EXTERNAL LIGHTNING PROTECTION - NIMBUS®

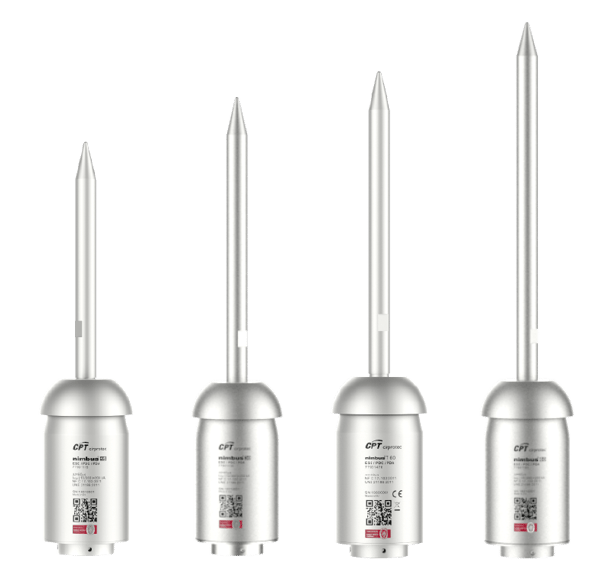

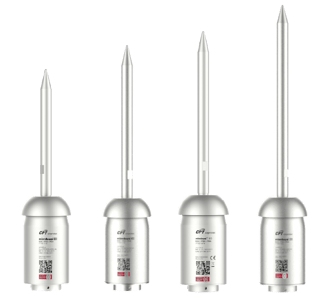

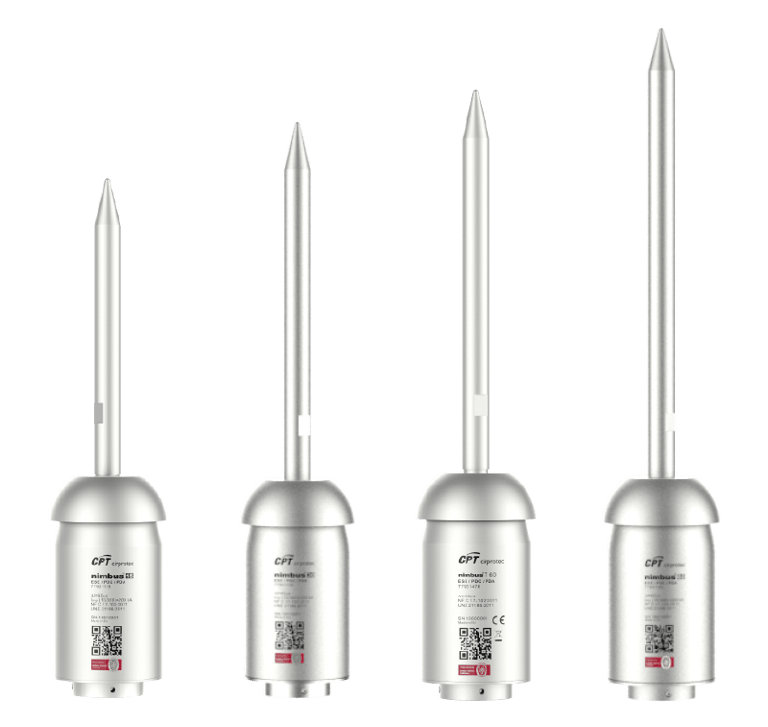

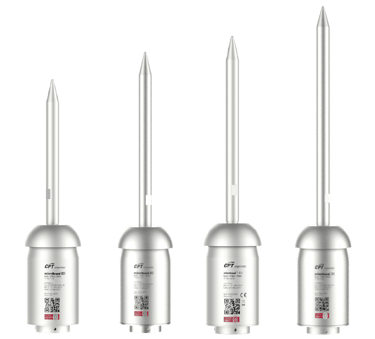

Nimbus® is the series of new generation lightning rods with electronic early streaming emission (ESE). Radius of protection up to 100 m (based on emission times of 15 μs, 30 μs, 45 μs and 60 μs).

FEATURES:

• Tested with lightning currents up to 200 kA (10/350 µs).
• Highest quality: AISI 316 stainless steel and non-expendable components.
• Tested and certified by independent laboratories.
• Extended 10 year warranty.
• Nimbus®, which protect more than 45,000 installations worldwide, a fact that bears witness to its performance, quality and warranty and our service.
• The nimbus® lightning rods exceed the requirements of the new version of standard NFC 17-102 v2011, with the goal of making them more robust, without sacrificing their compact size and with a significant weight reduction

ESE LIGHTNING PROTECTION SOLUTIONS

"WE ARE AUTHORISED CHANNEL PARTNER FOR SALES AND DISTRIBUTION OF JEF EARTHING AND LIGHTNING SOLUTIONS IN DELHI & NORTH REGION"

CDI COUNTER

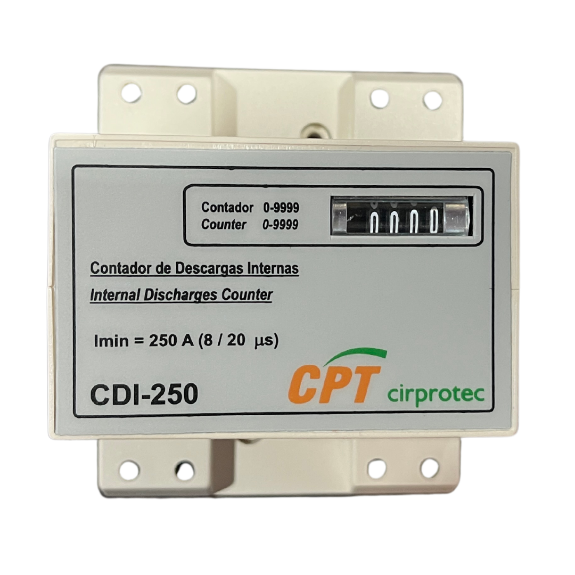

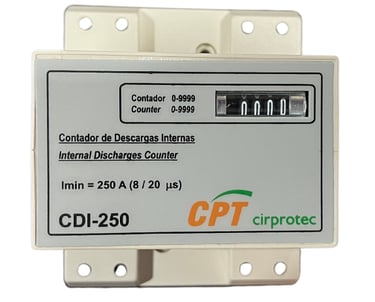

Surge counter model CDI-250 has no direct contact with elements of the lightning protection system. It allows monitoring of cumulative stress to the LPS and coordination of an effective maintenance and replacement programme cannot be reset.

INSTALLATION

The counter is installed on the grounding system at a place where an impulse current of more than 250A is likely to occur, for example between the SPD and the bonding bar. The grounding wire is passed through the counter. The counter does not require a battery or power supply and is maintenance free. The CDI-250 can be installed on a DIN rail or attached directly to a flat surface using screws. The counter can accommodate grounding 2 wires of up to 100 mm

GROUNDING SOLUTIONS

An effective grounding system is a fundamental requirement of any electrical system for operational and safety aspects/reasons. Without a good grounding system safety of equipment and human life are in danger. Essentially, every electrical installation needs a reliable grounding system.

A good grounding system is important for

• Human/Life Safety
• Limiting damage to electrical equipment in case of fault/lightning
• Correct operation of the electricity supply network and to ensure good power quality

Jef grounding products provide a cost-effective and technically superior grounding solution for all kinds of applications and has evolved a Maintenance-free grounding system drawing insight from RDSO and international standards like IEEE 80 & BS 7430. The products are proved to be a versatile system for all types of soil.

JEF grounding components are manufactured toensure a reliable and robust grounding system. Grounding Products are strictly in line with the national and international Standards; IS 3043, BS 7430, IEEE80 & IEC 62561-7.

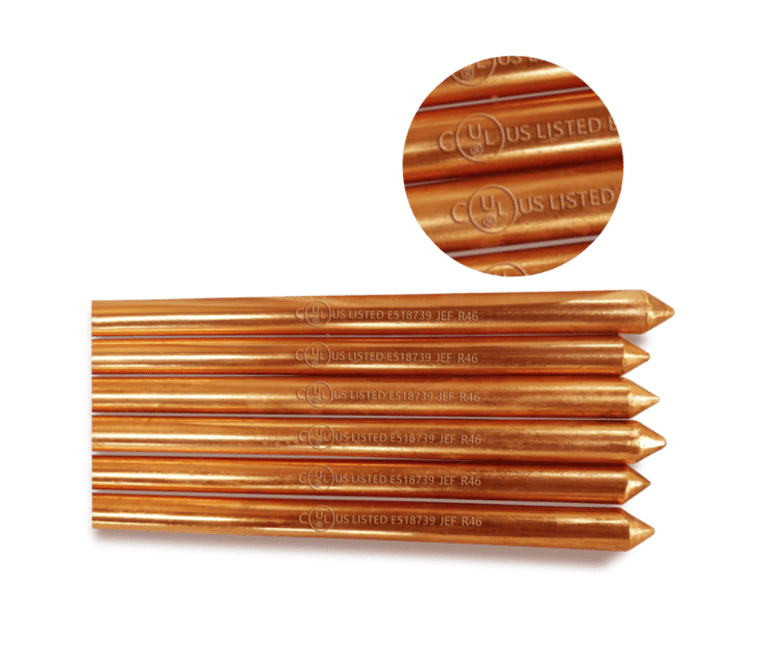

JEF EARTH ELECTRODES

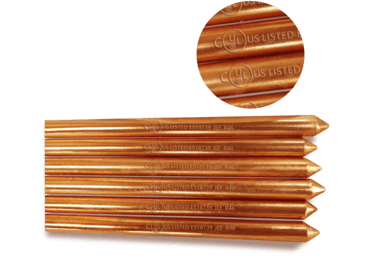

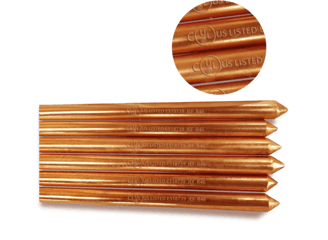

JEF Earth Electrodes are made up of high tensile low carbon steel circular rods with molecular copper bonding on the outer surface and conform to the latest IS & IEC standards.
Copper bonded low carbon steel Earth Electrodes are available in various lengths and diameters to suit specific requirements.

UL LISTED EARTH ELECTRODE ADVANTAGE:

• UL Certified
• Earth electrode conforms to IS & IEC standards
• High tensile strength-low carbon steel rod
• Based on globally accepted technology.
• Stable performance due to uniform coating.
• Various models according to customer requirements.
• Cost-effective.
• Suitable for all types of soil.
• Long life and easy installation.
• Superior resistance to oxidation
• Good electrical conduction & Effective performance.
• Copper Bonding Thickness-100/ 250 microns
• Available in standard 14.2 / 17.2 / 25 / 32 mm Diameter.

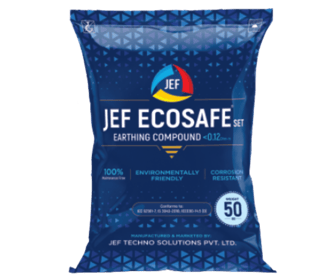

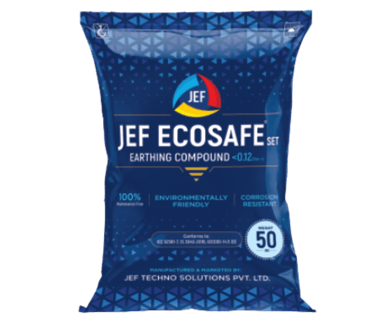

JEF ECOSAFE SET:

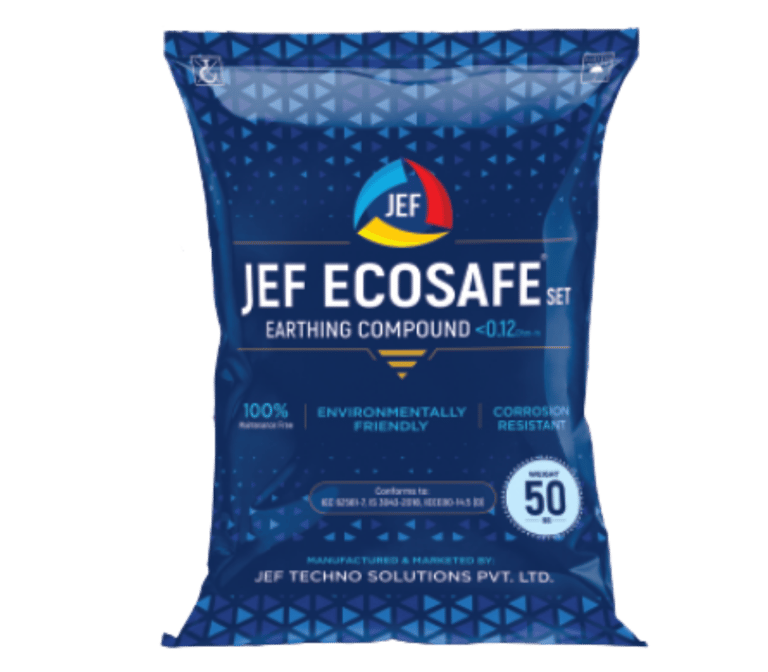

JEF offers carbon-based Maintenance-free Backfill compounds and Mineral-based chemical Backfill compounds to suit specific applications and conform to standards like IS 3043, BS7430, IEEE: 80 etc. The backfill compounds supplied by us are compatible with all types of grounding systems, enabling the use of copper and copper bonded steel rods or strip electrodes to suit the terrain and space restrictions.

ADVANTAGES

• Maintenance Free Grounding Solution.
• Backfill compound Resistivity ≤0.12 Ohm. meter.
• As Per Standards: IS 3043, BS-7430 & IEEE-80.
• Provides positive low resistance electrical connection to the earth.
• Gives flexibility in adopting any grounding system design.
• Suitable for any kind of Soil.
• Will not leech or diffuse into the ground.
• Easy to install.
• Environmentally friendly-No hazardous chemical.
• Offers a stable grounding system.
• Contain a corrosion inhibitor to protect the copper.
• Compatible with plate, Rod, Strip electrodes.

JEF EARTH PIT CHAMBER:

JEF-HDPE Chambers & covers are eco-friendly, rust proof, heavy-duty, weather-proof earth pit made of high-grade material-polyethylene and have excellent durability and strength. They are easy to install and environment friendly.

TECHNICAL SPECIFICATIONS:

MATERIAL. POLYMER BODY AND COVER

TOP DIAMETER. 250MM

BOTTOM DIAMETER. 348MM

TOTAL HEIGHT 260MM

SUITABLE FOR EARTHING

JEF EARTHING CLAMPS:

JEF clamps are designed to provide good contact with earth electrodes with excellent mechanical strength and are corrosion free. These clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

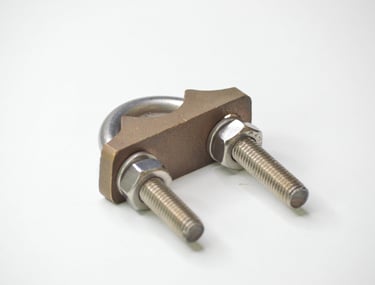

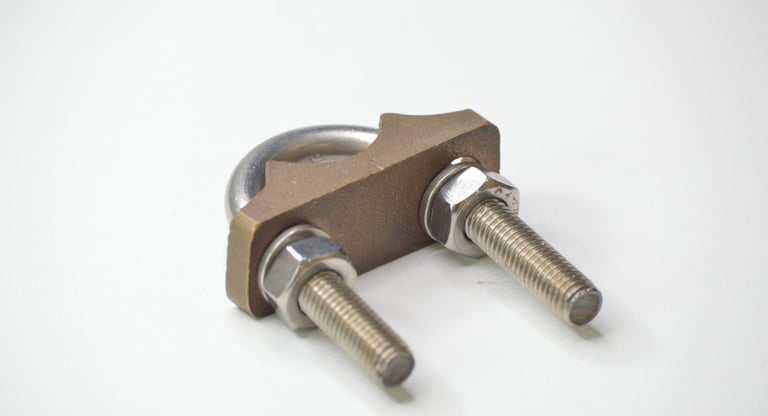

ITEM NAME- U CLAMP(STAINLESS STEEL & GUN METAL)

SUITABLE FOR: 14.2, 17.2mm Dia. Electrode

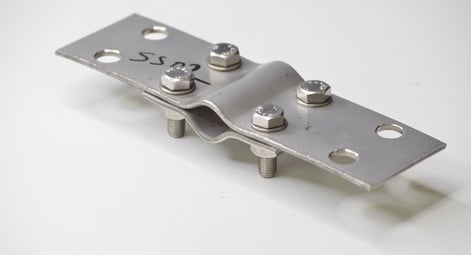

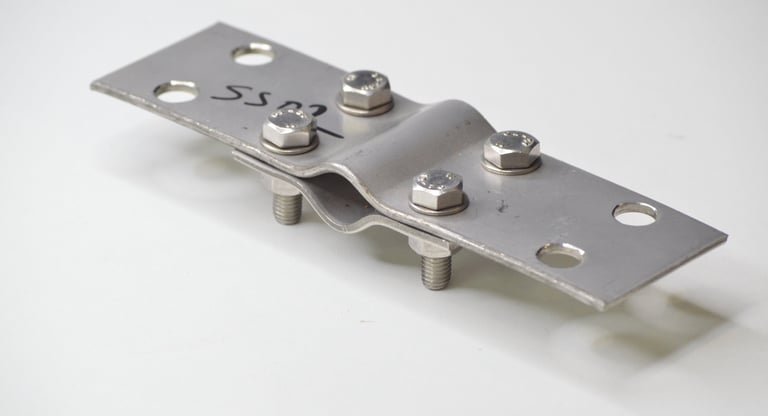

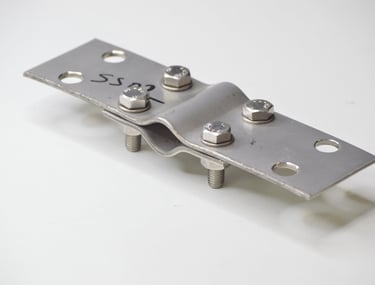

ITEM NAME- SS DOUBLE SIDED CLAMP(STAINLESS STEEL )

SUITABLE FOR: 14.2, 17.2, 25, 32mm Dia. Electrode
